$195.38
Original: $558.24
-65%TERRA PC-Mini 3540 Fanless | Intel Pentium Silver J5005 | 4GB RAM | 120GB SSD | Windows 10 Pro—
$558.24
$195.38The Story
'Build to Order'

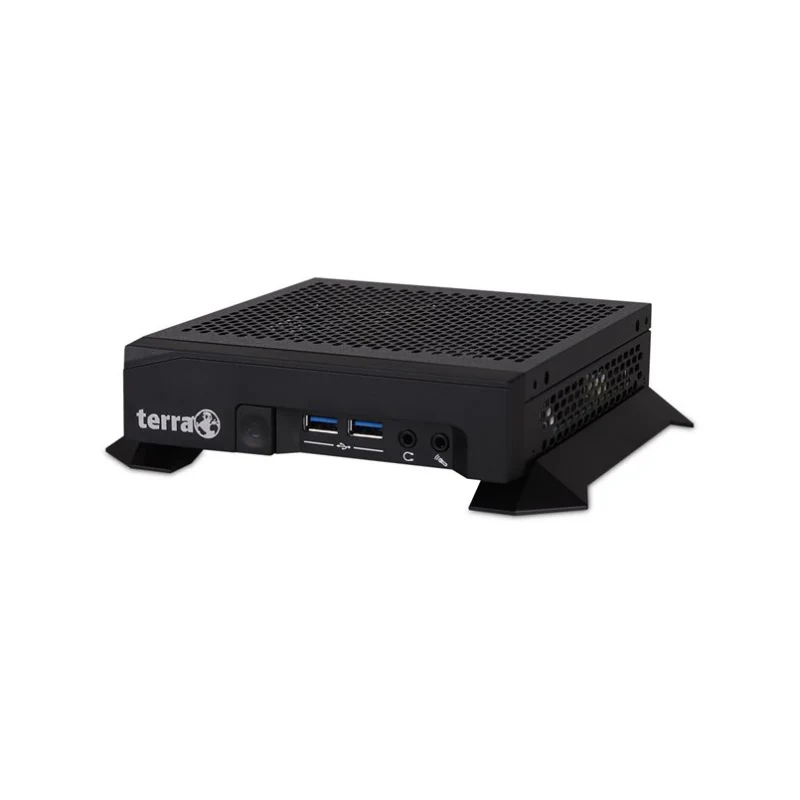

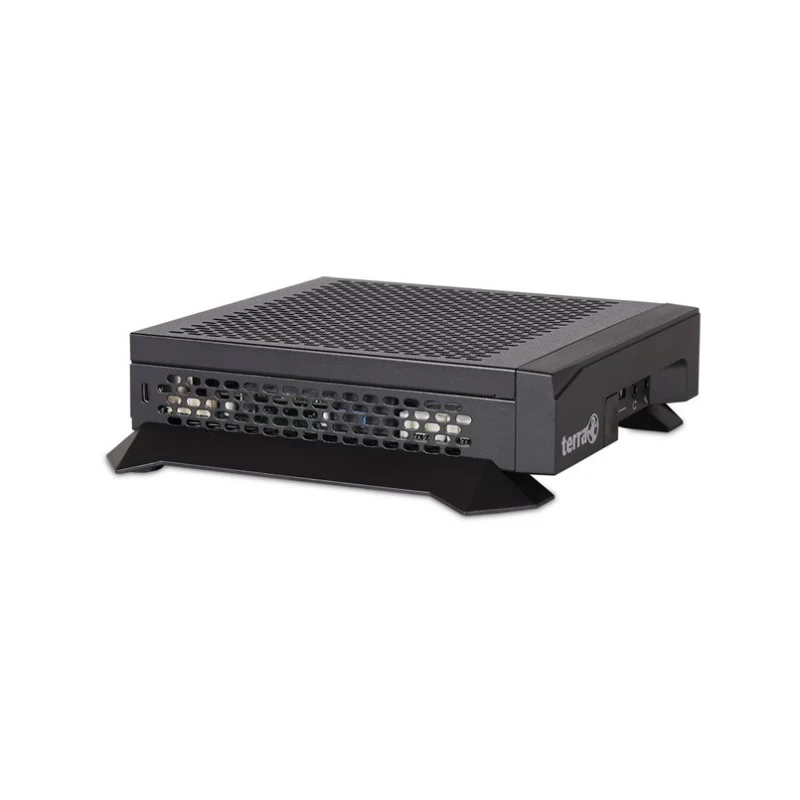

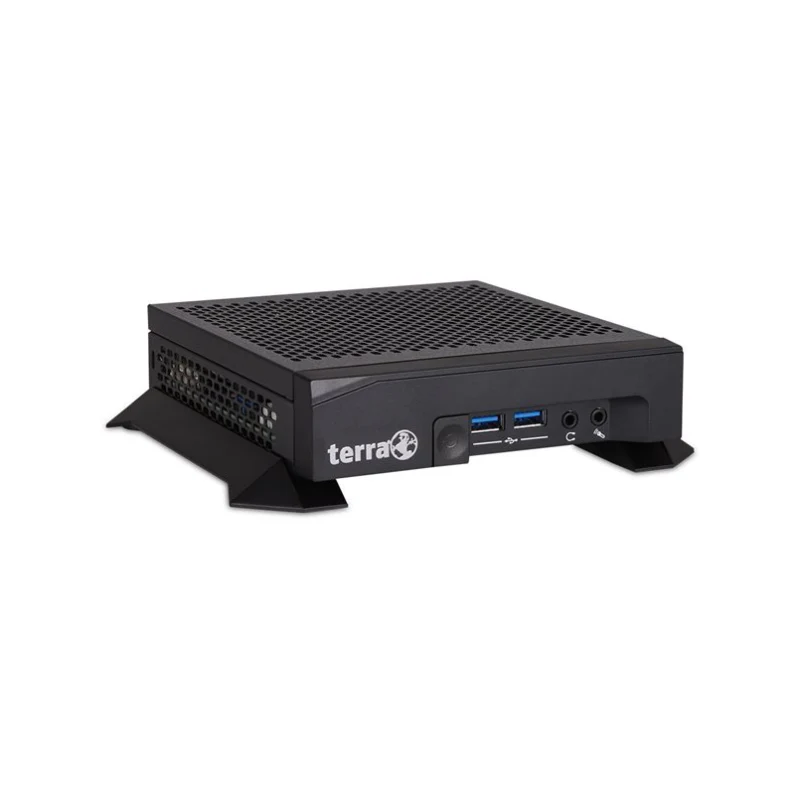

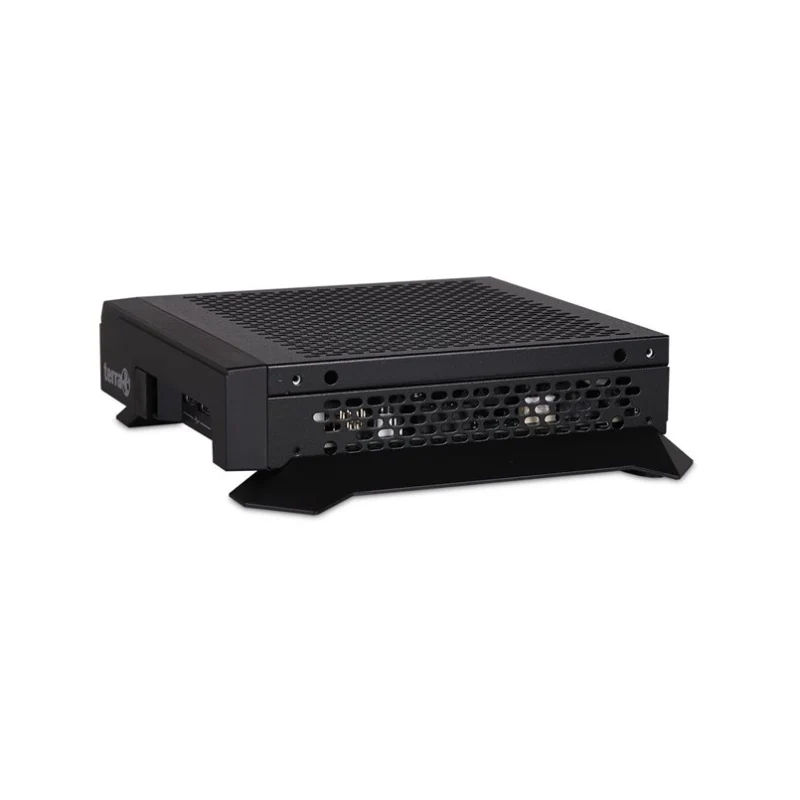

Fanless/ passive cooled Mini-PC. Player with Intel Pentium processor and serial COM port. This device is supporting 4K-UHD, Dual-Monitor- Support. It is ideal for Digital-Signage- and Point-Of-Sale-Applications. With the optional purchasable VESA-mount you can easily assemblage the device to a TFT-display.
Fanless/ passive cooled Mini-PC. Player with Intel Pentium processor and serial COM port. This device is supporting 4K-UHD, Dual-Monitor- Support. It is ideal for Digital-Signage- and Point-Of-Sale-Applications. With the optional purchasable VESA-mount you can easily assemblage the device to a TFT-display.
| General | |
| Processor model | Intel Pentium Silver Processor J5005 (4M Cache, up to 2.80 GHz) |
| Operating system | Windows 10 Pro [Downgrade by Windows 11 Pro] |
| Software | |
| Pre-installed software | 1 month trial version for new Microsoft? Office 365 user |
| Processor | |
| Processor family | Pentium |
| Processor cores | Quad-Core (4 Core) |
| Processor socket | Embedded in SOC |
| Number of processors | 1 |
| Memory | |
| Internal memory | 4 GB |
| Maximum internal memory | 16 GB |
| Memory clock speed | 3200 MHz |
| Internal memory type | DDR4 |
| Memory slots | 1 pc(s) |
| Storage | |
| Total storage capacity | 120 GB |
| HDD interface | 1x M.2 Key B socket (2242 / 2260 / 2280) SATA |
| SSD interface | SATA-3 |
| SSD capacity | 120 GB |
| HDD capacity | 1 x 120 GB - SSD |
| Number of storage drives supported | 1 pc(s) |
| Storage media | SSD M.2 |
| Performance | |
| Series | Industry Business |
| Noise level | 0 dB |
| Audio output channels | 5.1 Channel Surround |
| Motherboard chipset | Intel embedded Gemini Lake SoC |
| Design | |
| Chassis type | Mini format |
| Certification | ISO 9001, Assembled in Germany Compatibility: SMBios (DMI), EnergyStar (Valid only for the U.S.), EN60950, EN55022, EN55024, EN61000-3-2/3, 89/336/ECC |
| Keyboard form factor | Optional |
| Keyboard | |
| Keyboard language | Keyboard optional |
| Device interface | USB |
| Technical details | |
| Localization | International |
| Field of use | Digital Signage |
| Packaging content | |
| Included Accessories | Quick Install Guide (DE/ EN), Driver CD, power supply, Europlug CEE7/16 1.8 m, Pedestal for vertical use Option: VESA mounting Kit |
| Weight & dimensions | |
| Height | 3.6 (4.2) cm |
| Width | 14.7 (18.8) cm |
| Depth | 16.5 (17.5) cm |
| Weight | 0.9 kg |
| Other features | |

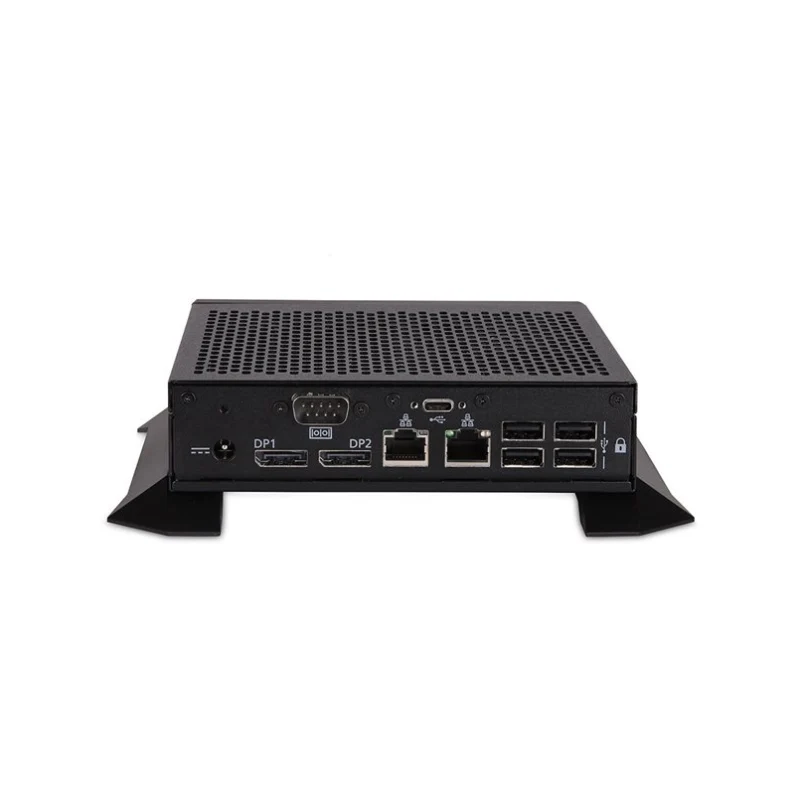

| Interface | Front: 2x USB 3.2 Gen1, 2x Audio Rear: 4x USB 2.0, 2x LAN RJ-45, 2x Display Port (DP), 1x DC-in, 1x COM Option: 1x USB Type-C |
| Compatible operating systems | Windows 10 (64-Bit) Windows 11 (64-Bit) Unsupported OS by WAG: Linux (64-Bit) |
| Motherboard manufacturer | FTS D3544-S3 Industrial Series 24-7 ready Made in Germany |
| Cooling type | Passive - fanless |
| Compliance industry standards | CE, ISO 9001, Assembled in Germany Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2, WFM 2.0, EnergyStar, EN60950, EN55022, EN55024, EN61000-3-2/3, 89/336/ECC 24-7 ready (temporary fan-maintenance required) |
| Special features | Kensington Lock Supports PowerOn after Power loss TPM 2.0 Windows Autopilot-ready Option: VESA Mounting Kit |
| Mouse | |
| Mouse included | Optional |
| Graphics | |
| On-board graphics adapter memory | Dynamic |
| On-board graphics adapter maximum resolution | Display Port 1.2 max. 4096x2160 @ 60Hz |
| Graphics card | Intel UHD Graphics 605 (800 MHz) |
| On-board graphics card model | Intel UHD Graphics 605 (800 MHz) |
| Graphics adapter ports | 2x Display Port (DP) Supports Dual-Monitoring |
| Power | |
| Power source | External fanless power supply |
| Power consumption (standby) | 2.0 Watt (Sleep Mode S3. Suspend to RAM. WOL activated) 0.2 Watt Soft off (S5 Mode) W |
| Maximum input power | 24 W |
| Nominal power | 6 Watt Long Idle-Mode 27 kWh a year (TEC = Typical Energy Consumption) |
| AC adapter input voltage | AC 100/240 V ( 50/60 Hz ) |
| Operational conditions | |
| Operating temperature (T-T) | 0 C - 60 C Note: In environments with an operating temperature above 40?, SSD-drives and SO-DIMM-memories with an advanced range of temperature are recommended! |
| Recommended humidity operating range | 10 - 80% (non-condensing) |
| Network | |
| Ethernet LAN | Network adapter - integrated |
| LAN controller | 1x Intel i210, 1x Realtek RTL 8111G PXE support Wake-on-LAN (WoL) |
| Wi-Fi standards | Intel 9260 WiFi/BT module integrated via M.2 (2230E) 802.11ac Bands: 2.4 GHz + 5 GHz (Dual-Band) |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ac Bluetooth 4.2 |
| Optical drive | |
| Optical drive type | None |
