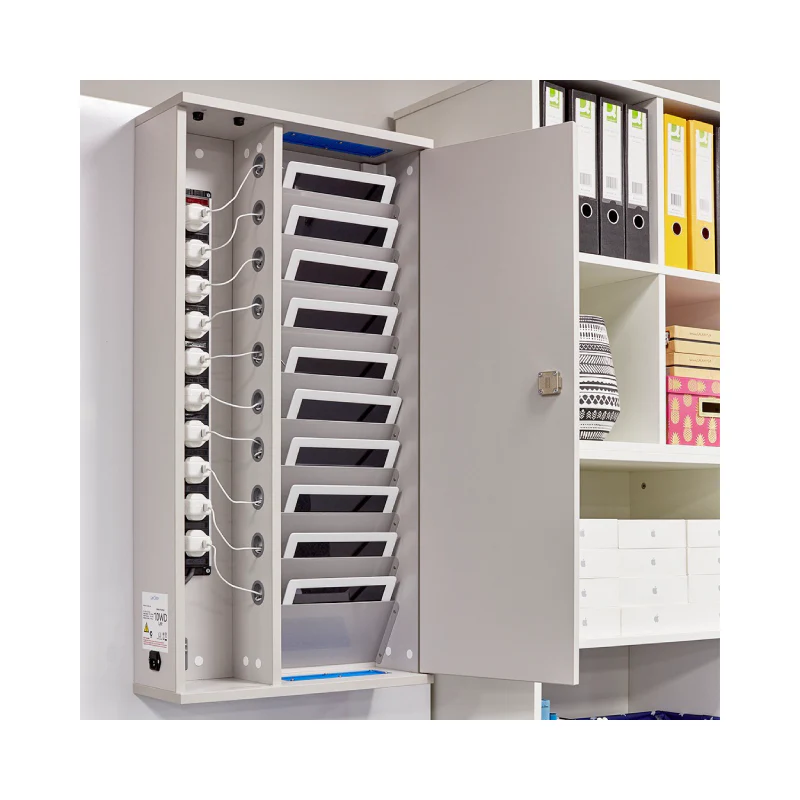

Lyte Wall 10 - Mobile Device Charging Cabinet

Device Protection

• Tablets sit in slanted steel shelves angled to enable the devices to be picked up and returned easily
• Each compartment fits up to an 11″ tablet with enough room for most protective cases

Charging

• Charges 10 tablets up to 11″ screen size plus accommodates phones and POS devices
• Device adaptors plug into 1 x 10-way power strip designed and manufactured in-house
• Simultaneous charging of all 10 devices to ensure devices are fully charged as fast as possible
• Sockets accommodate larger adaptors and plugs without blocking adjacent outlets
• IEC socket with 1.8m / 6ft power cord

Cable Management

• Cable clip portholes located in the side of each device storage shelf to ensure the cable is locked into position
• Cable clip portholes feed cables from the side power compartment to the front device compartment, preventing cables from being removed with the device

Practicality

• Perfect for use in busy areas such as classrooms, hospital wards, staff rooms, industrial and commercial buildings
• Narrow overall depth of 18.5cm / 7.3″ saves precious floor space
• Built to commercial-grade furniture standards, passing tests for durability, stability, and weight-bearing loads for high impact usage
• Top surface overhangs at the rear allow the top surface to sit flush against the wall but still allowing fresh air to circulate through the back of the unit
• Wall hanging kit (supplied) includes all components need to fix the unit securely with instructions
• Tested to comply with Healthcare Infection Control Procedures to ensure the unit can be cleaned thoroughly, according to healthcare guidelines, preventing the spread of infection

Security & Protection

• Separate secured power compartment for ultimate safety and security
• The isolated power compartment is secured with a 16-gauge steel cover panel, fixed with security screws, to conceal the electrical components and to prevent loss or damage of cables
• Silent ventilation system includes side and rear vents to keep devices cool with constant air circulation without the need for a noisy fan that can also spread germs
• Key locking system, tested by an independent locksmith, includes 6 plate lever activation system and double-sided key with two sets of teeth, making the lock more durable, impossible to pick, and substantially increasing security
• Inset door handles prevent protruding parts eliminating breakages
• Safety tested and certified by the independent Underwriters’ Laboratory (UL)

Set-Up

• Ships fully assembled with wall fixing kit supplied
• Large doors open wide and concealment panel removes for easy access and fast set up

Technical Specifications

• Unit Dimensions: W530 x D185 x H1025 mm / 20.9″ x 7.3″ x 40.4″
• Device compartment size: W300 x D200 x T30 mm / 11.8″ x 7.9″ x 1.2″
• AC pocket size: Feature not available
• Voltage compatibility: UK – 240 volts / USA & Canada – 120 volts
• Input frequency: 50 / 60 Hz
• Input cord lenght: 1.8 m / 6 ft
